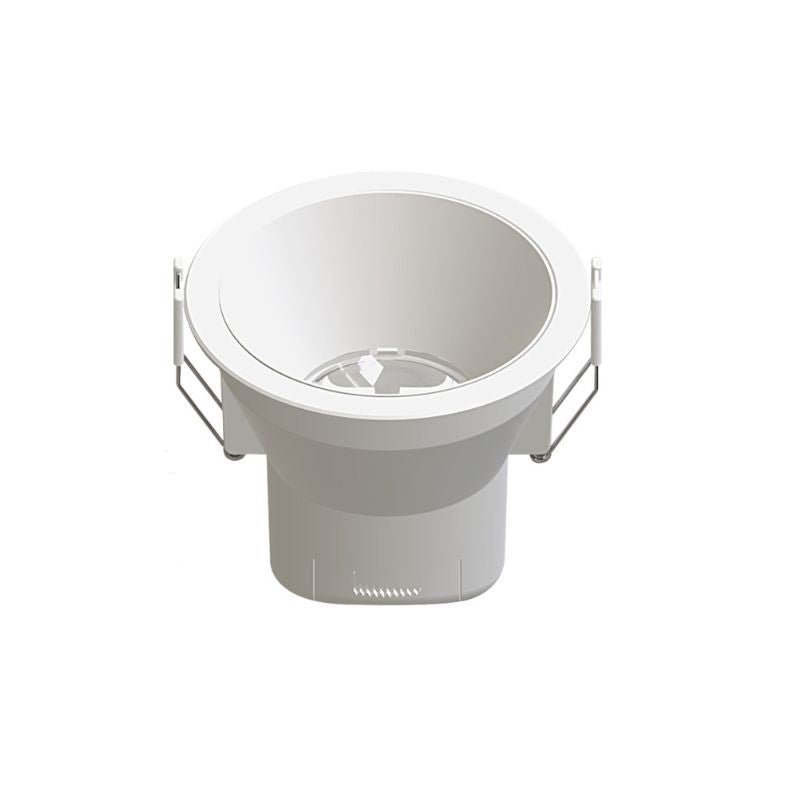

Built -in LED spot 9W IP44 CCT Ø85.5mm

Built -in LED spot 'adjustable light temperature' available in 2 colors 'Dimmable' Diameter of 90 mm Employment

If you are looking for discreet and practical lighting to install at home, Silumen offers you to opt for the Built -in LED spot of 9W CCT. He is dimmable, has a IP44 protection and has a diameter of 85.5 mm. Discover immediately the attractive characteristics of this trendy and efficient lighting solution.

The advantages of the built -in LED spot Ø85.5mm Silumen

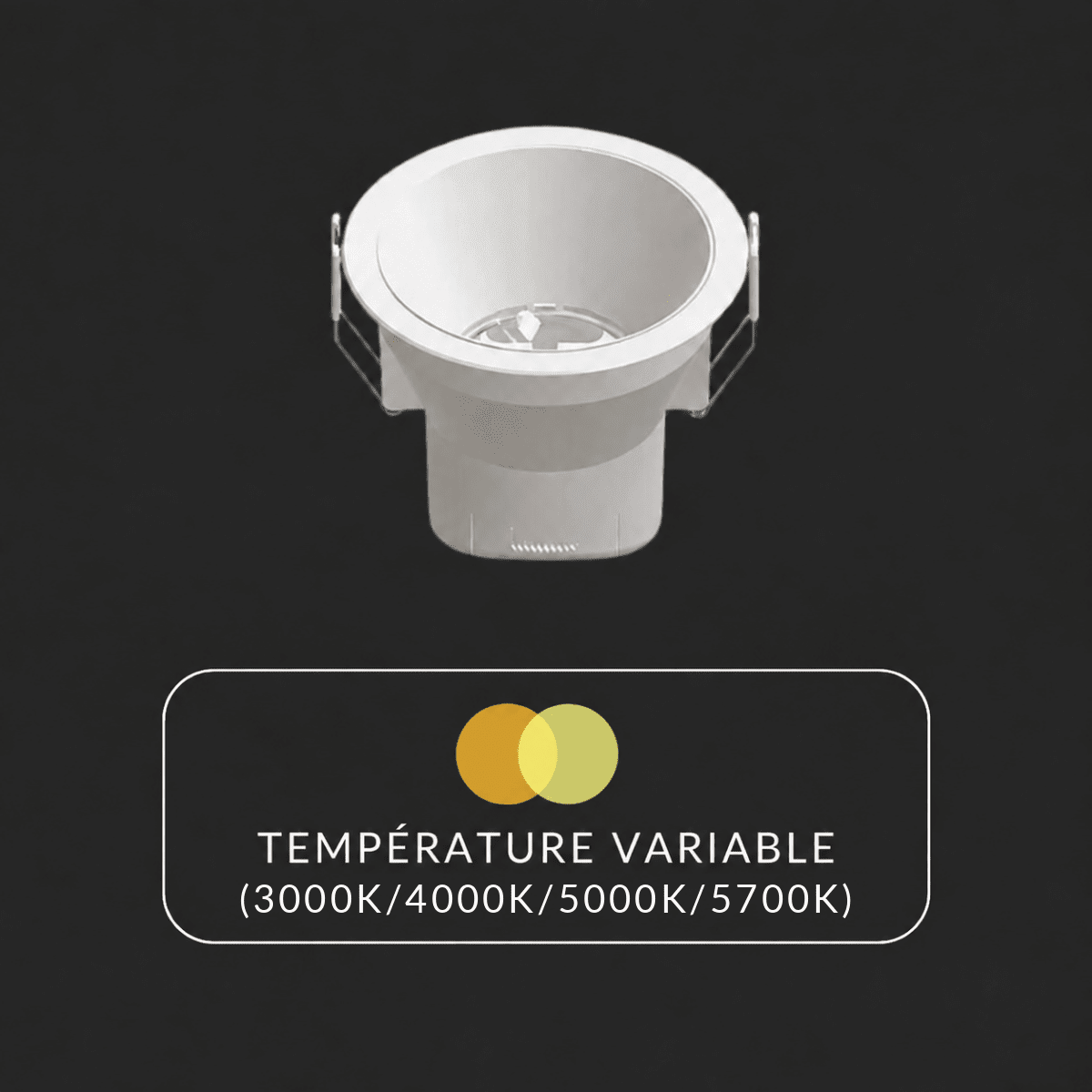

A color of white light for all your rooms

To allow you to install this Built -in LED spot in all your rooms without compromising the quality of your lighting, The latter's light temperature is variable (CCT).

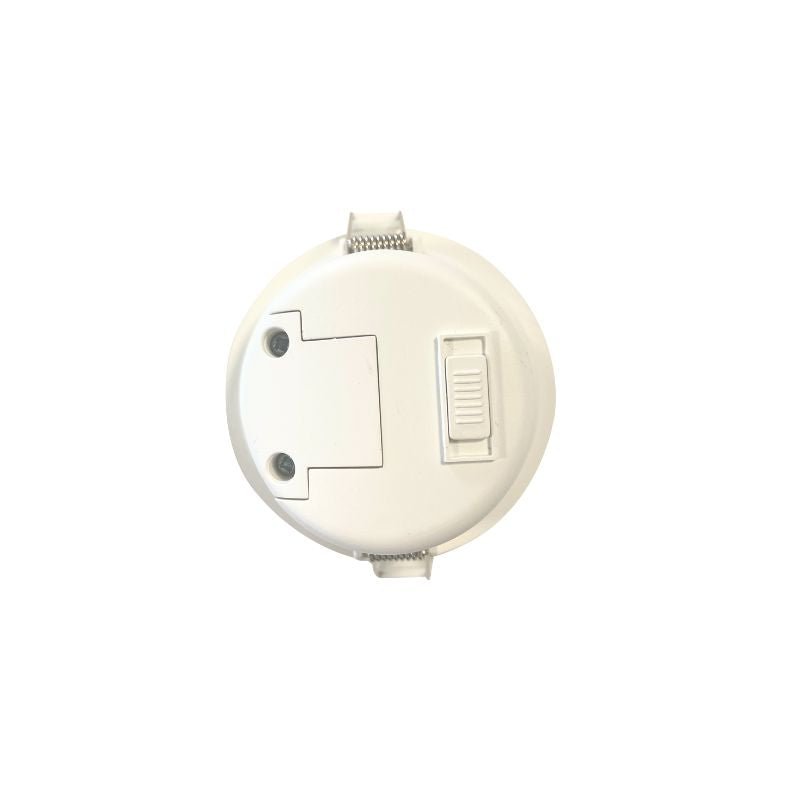

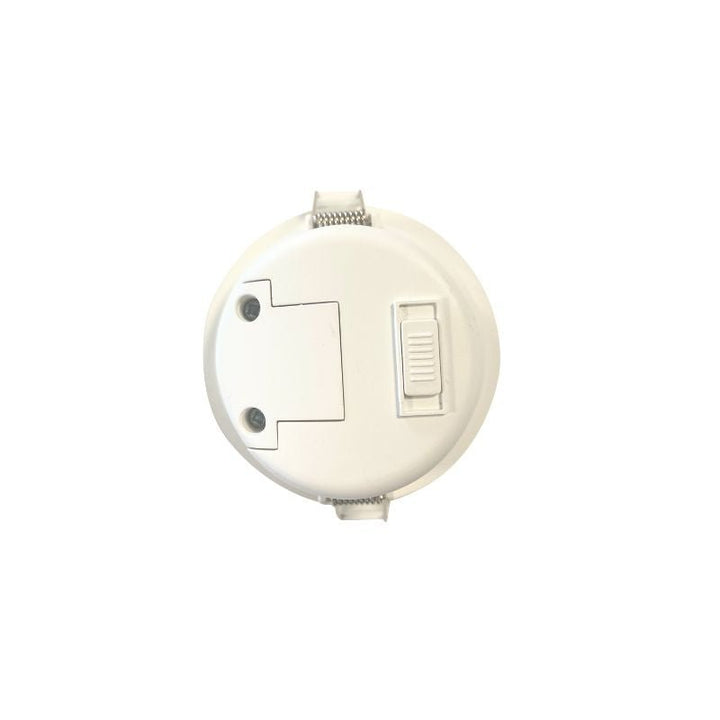

Choose the lighting color suitable for your spaces thanks to the switch on the back of the spot. Position it on "Dl '" for cold white lighting, "' nw '" for neutral white and "ww'" for warm white.

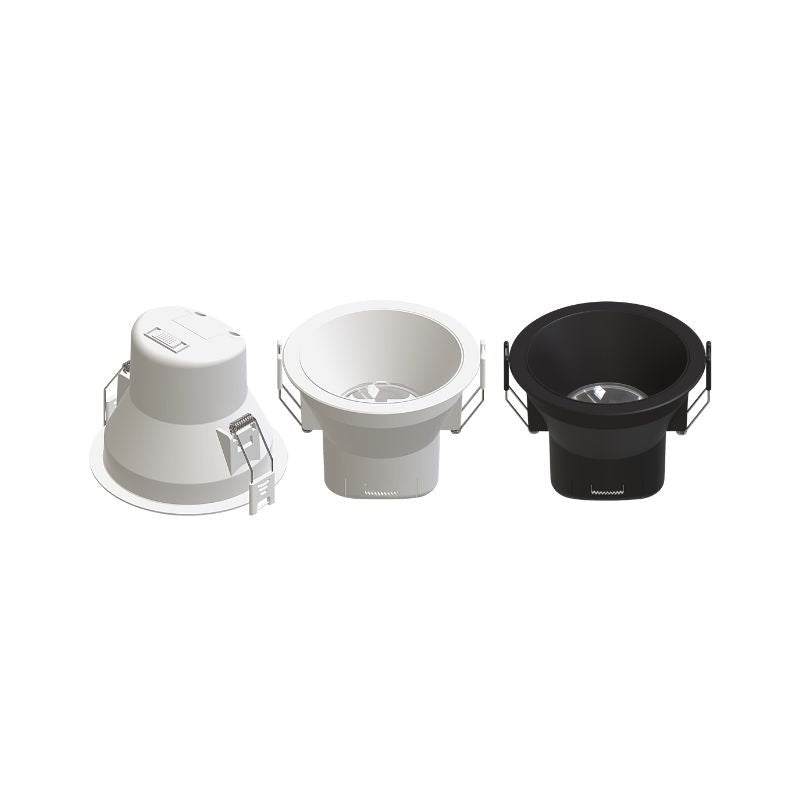

A built -in LED spot available in 2 colors

The built -in LED spot CCT Silumen is available in 2 different colorss. Make a refined and discreet installation at the level of your false ceiling by opting for the version of White color.

If you have a rather dark (or black) color ceiling and want to get a luminaire in the same shades, we invite you to choose the declination of black color of the LED spot.

Choose Dimmable lighting for your parts

This built -in LED spot produces a light of 720 Lumens For a power of 9W. Being suitable for both a fairly targeted lighting as a main light, its light flow is diffused according to an angle of 60 °.

By associating this LED spot with a LED lighting variator, you have the possibility of controlling its light intensity as desired and thus adapting your lighting to any situation.

The installation of the 9W CCT Built -in LED spot

• 1. Make sure the current is cut before installing the LED spot.
• 2. Drill a 90 mm diameter of a diameter of a diameter you have chosen.
• 3. Choose the color of your lighting using the switch on the back of the LED spot.
• 4. Connect the spot to the sector.
• 5. Pass the CCT LED spot through the embedding hole, the wires first.
• 6. Insert the spot into its accommodation by raising the fixing legs (compress the springs).

N.B. The apparent surface of the LED spot once embedded displays IP44 protection, but it has an IP20 index. The spot can be covered with an insulating material after installation, but its lifespan would be improved by avoiding such an installation.

Caractéristique	Valeur
Puissance	Swine
Lumens/W	80 did not/and
Type de LED	SMD 2835
Dimmable	Oui
Couleur d'éclairage	CCT
Fréquence	50-60
Équivalent incandescence	Right
Rendu des couleurs IRC	Ra 80
Angle d'éclairage	60°
Indice de Protection	IP 44
Classe énergétique	G
Type d'installation	Built -in
Compatible avec variateur	Oui
Diamètre d'encastrement	85,5 mm
Diamètre du produit	ø 103 mm
Température de fonctionnement	-30 ° C to +50 ° C
Tension	220 - 240V
Type de courant	AC
Couleur	Noir
Dimensions	ø 103 x 103 x 85 mm
Largeur	103 mm
Longueur	103 mm
Épaisseur	85 mm
Profondeur/Hauteur	85 mm
Forme du luminaire	round
Certifications	What & Rohs
Garantie	2 ans
Orientable	Non
Luminosité	720 lm
Encastrable	Oui
Matériels	ABS plastic aluminum
Durée de vie	~30 000 h
Fonction	CCT

Notice d'installation
