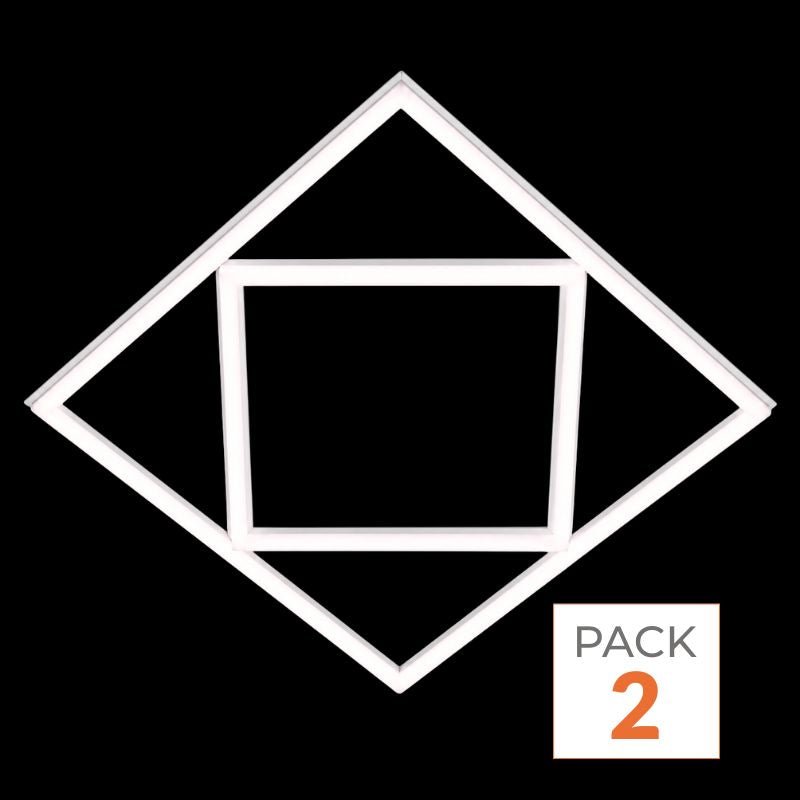

Diamond-Shaped Frame LED Panel 60x60 64W - Pack of 2

Two panels are enough to illuminate a standard office: a combined 15360 lumens puts the average illuminance well above the 500 lux expected at a workstation under standard NF EN 12464-1, for just 128W drawn from the electrical panel. The faceted aluminum frame adds a distinctive look where a standard commercial ceiling panel remains anonymous.

Technical details

• Pack contents: 2 identical panels
• Power: 64W per panel, 128W for the pack
• Luminous flux: 7680 lm per panel, 15360 lm for the pack
• Luminous efficacy: 120 lm/W
• Color temperature: Neutral White 4000K
• Color rendering index: Ra 80
• Beam angle: 120°
• Power supply: 220 - 240V, 50-60Hz, 2 integrated transformers per panel
• Power factor: 0.9
• Electrical insulation class: Class II
• Materials: Aluminum and polycarbonate
• Individual dimensions: 59.5 x 59.5 cm, thickness 1.5 cm
• Lifespan: ~50000h
• Energy class: F
• Certification: CE & RoHs
• Warranty: 5 years

Features

• 120 lm/W efficacy: keeps the room’s power consumption under control in line with RE 2020 energy-efficiency goals
• Faceted frame doubles as a heat sink, helping maintain luminous flux over time
• Two transformers per panel: the load is distributed across two units rather than one
• Flicker-free power supply, a common requirement in workstations equipped with screens
• Polycarbonate diffuser eliminates visible light points when viewed directly
• Class II: no protective earth conductor needs to be connected to the luminaire

Installation

The panel fits into a suspended ceiling grid with 600 x 600 mm spacing, with no special tools required. Isolate the circuit at the electrical panel, connect each panel to 220 - 240V in accordance with standard NF C 15-100, then let the panel rest on the grid. For solid ceilings, a surface-mounting kit or a pair of suspension cables is required for each panel. Allow at least 5 cm of ceiling void to accommodate the transformers and cable gland.

Where can you use these LED panels?

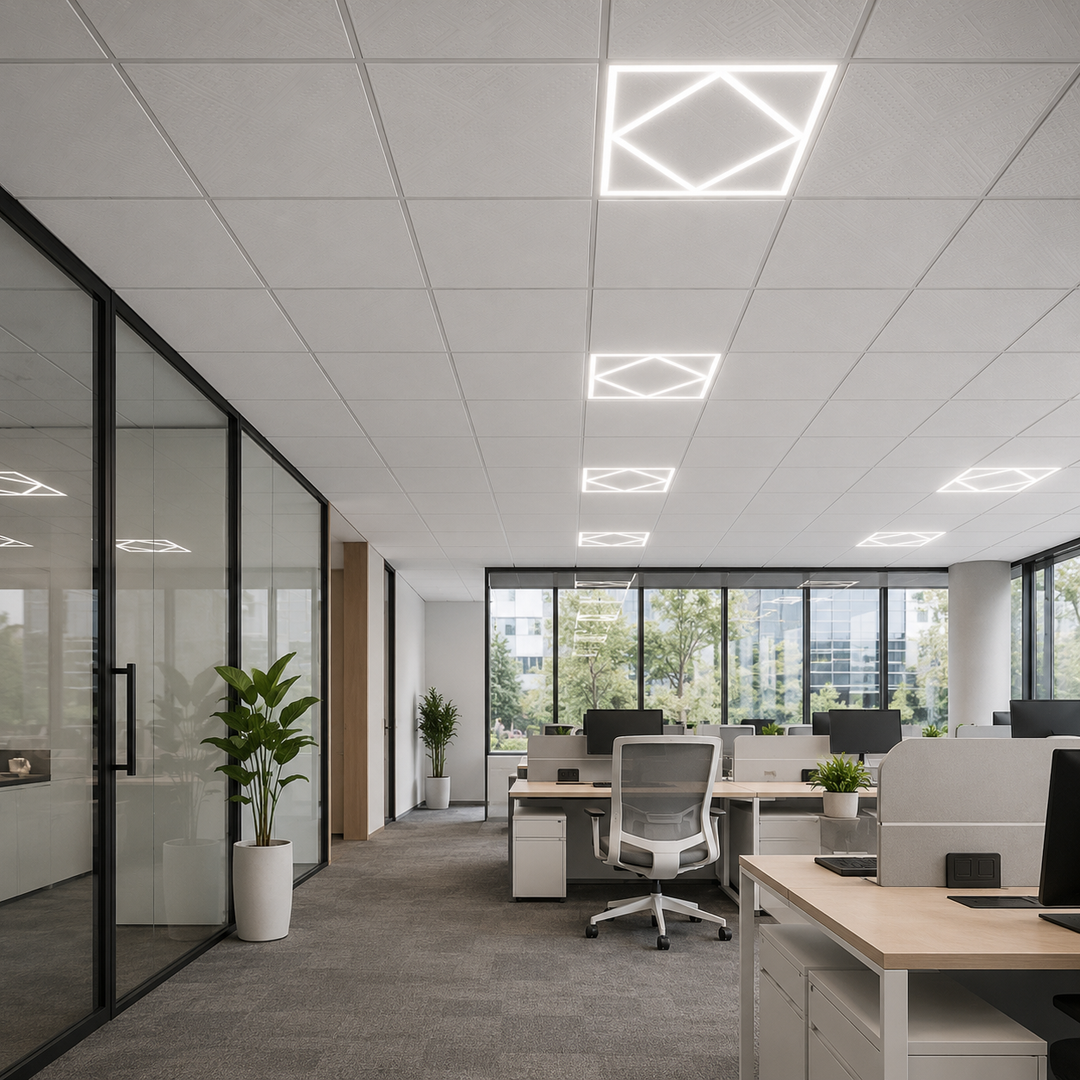

Private or shared office, meeting room, reception desk, medical practice, classroom, or small retail space: the pack’s 15360 lumens comfortably illuminate 40 to 50 m² of office floor space.
