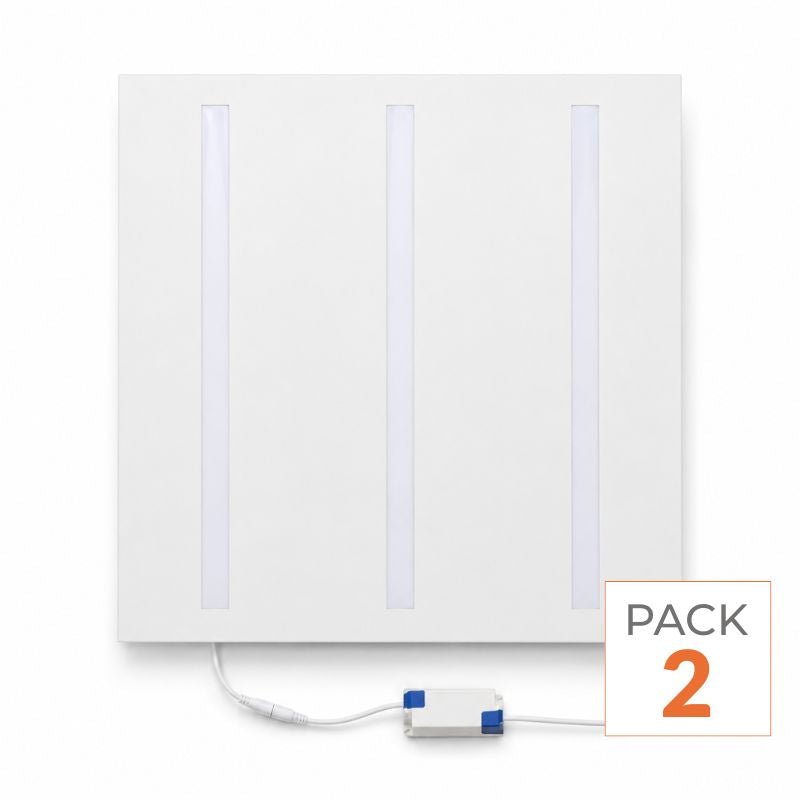

3-Line Grid LED Panel 60x60 40W White - Pack of 2

Replacing two end-of-life fluorescent panels now requires just one maintenance visit: these panels fit into the existing ceiling grid and halve the power draw while bringing the total output to 8000 lumens. Their three-line light grid also avoids the uniformly white surface of first-generation commercial ceiling panels.

Technical details

• Pack contents: 2 identical panels
• Power: 40W per panel, 80W for the pack
• Luminous flux: 4000 lm per panel, 8000 lm for the pack
• Luminous efficacy: 100 lm/W
• Color temperature: Neutral White 4000K
• Color rendering index: Ra 80
• Beam angle: 120°
• Power supply: 220 - 240V, 50-60Hz, transformer included
• Power factor: 0.9
• Electrical insulation class: Class II
• Materials: Aluminum and polycarbonate
• Color: White
• Dimensions per panel: 59.5 x 59.5 cm, thickness 1.8 cm
• Lifespan: ~50000h
• Energy class: F
• Certification: CE & RoHs
• Warranty: 5 years

Features

• Direct replacement for existing panels in a 600 x 600 mm ceiling grid, with no ceiling work required
• Light is distributed across three lines separated by matte white areas, giving the room visual structure
• 1.8 cm profile: compatible with the limited ceiling voids often found in commercial renovations
• Flicker-free power supply for occupied workstations
• Transformer included; no additional accessories to order
• Class II, no earth connection required for the luminaire

Installation

Isolate the lighting circuit before starting work. Remove the existing panel, connect the transformer to the 220 - 240V supply in accordance with NF C 15-100, then rest the panel on the 600 x 600 mm ceiling grid. Align the three light lines in the same direction on both panels; otherwise, the pattern will look disorderly once installed. For solid ceilings, allow for a surface-mounting kit or suspension cables for each panel.

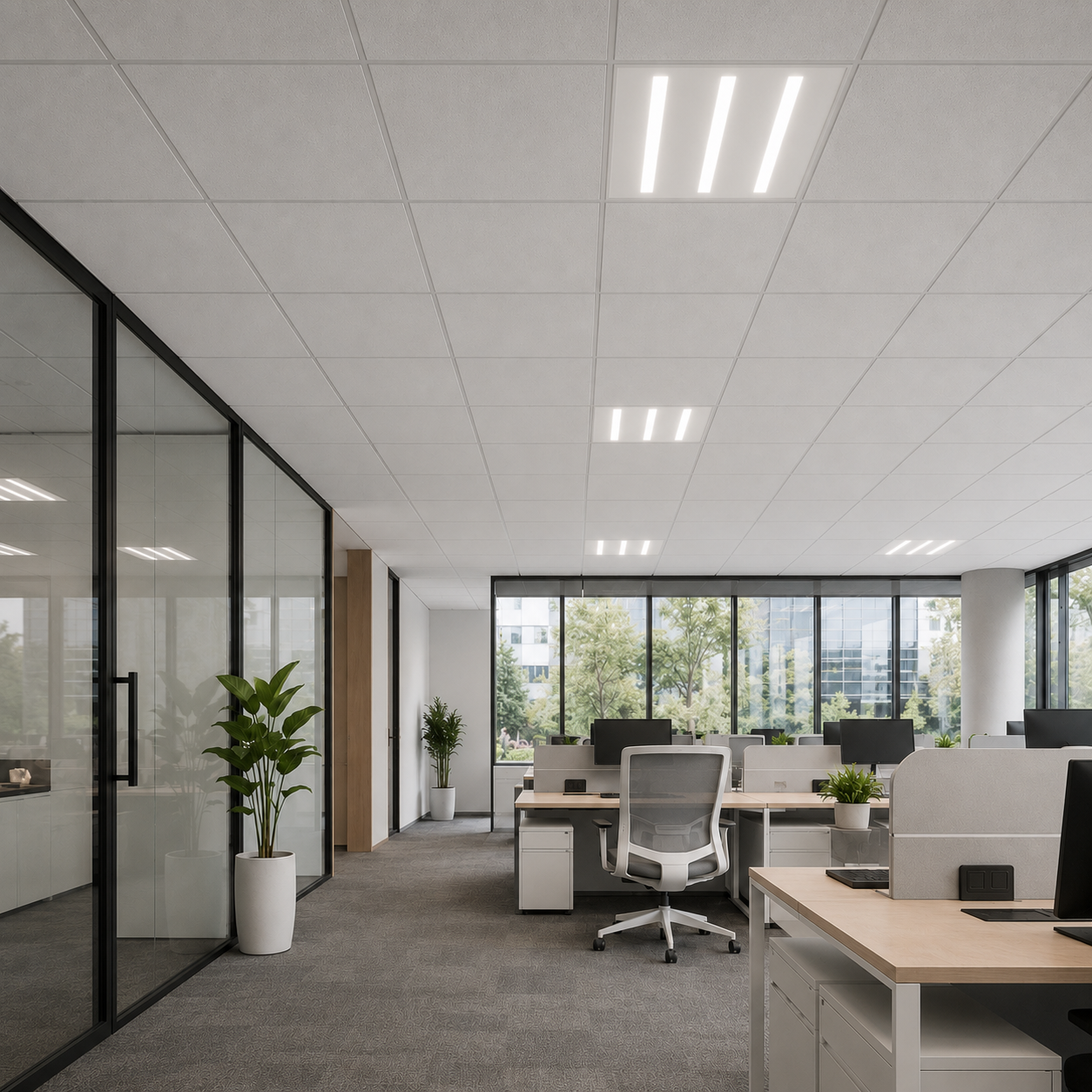

Where can you use these LED panels?

Office, meeting room, reception area, bank or real estate agency, professional practice, training room, or retail space: 8000 lumens cover 20 to 25 m² of floor area.
