2m Black Recessed Three-Phase Track

This is the go-to module for commercial spaces: two metres, three circuits, and enough capacity for spotlights to provide general, accent and ambient lighting on a single recessed track. Installation costs decrease as the span increases.

Technical details

• 220 - 240V power supply, alternating current
• Three-phase circuit: 3 phases + neutral + earth, providing 3 independent circuits

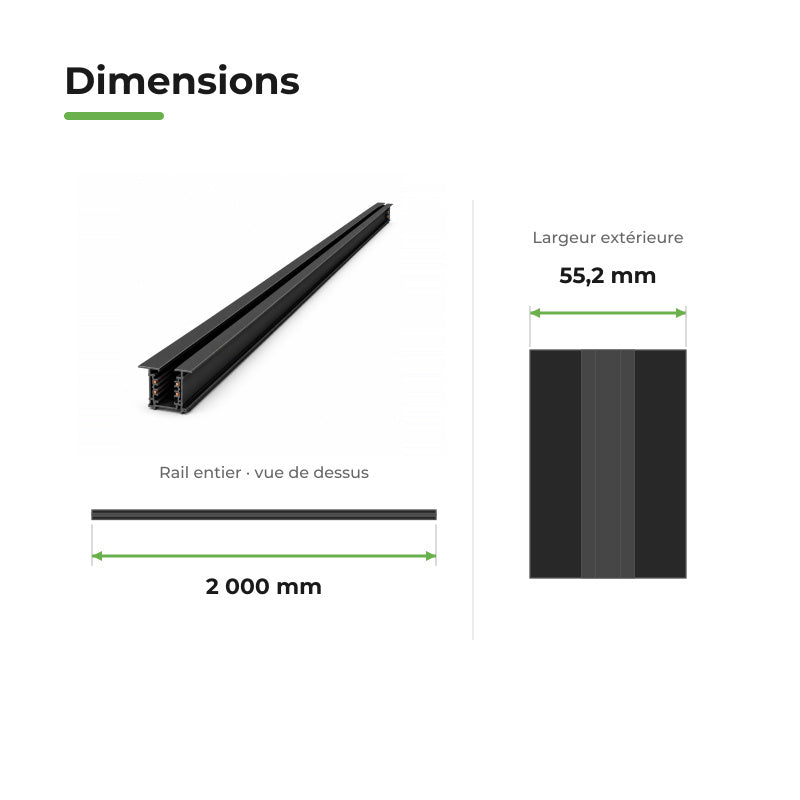

• Usable length: 200 cm
• Copper conductors
• IP20 rating (indoor use, no water protection)
• Black finish
• CE & RoHs certification
• 2-year warranty

Features

• Two metres of continuous recessed three-phase track
• General, accent and ambient lighting distributed across three circuits
• Capacity for several spotlights per circuit
• Fewer modules and joints across a large area
• Black finish, the standard for commercial fit-outs

Installation

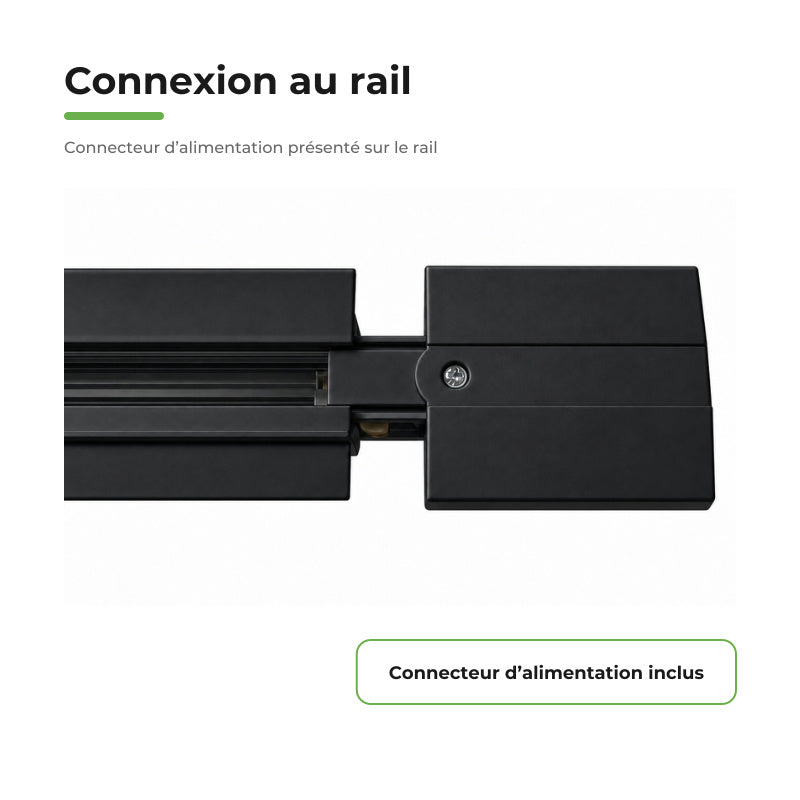

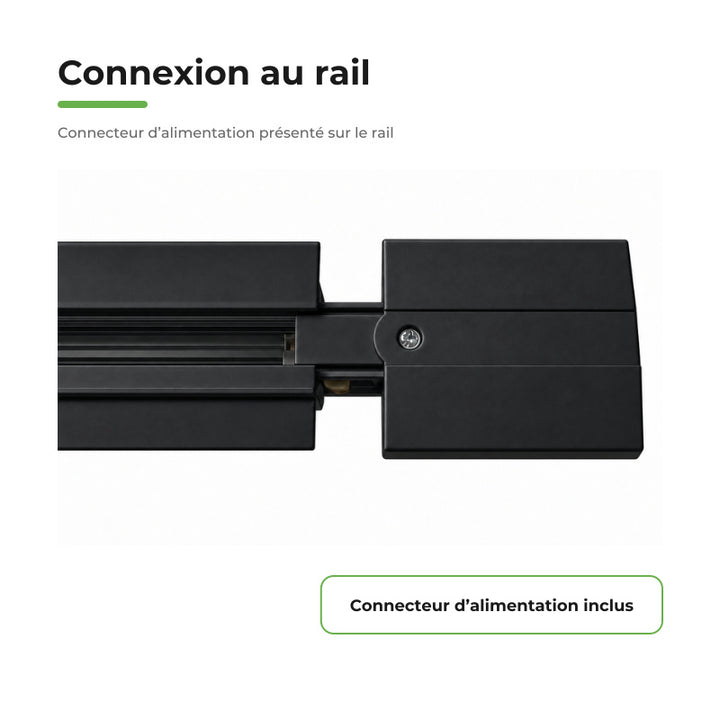

Connection requires a five-conductor supply, with each phase on its own protected circuit. Allow for a straight recess and at least three fixing points over two metres. Record which phase corresponds to each circuit in the as-built documentation before closing the ceiling, then assign the spotlights circuit by circuit.

Where to use this recessed track

Retail spaces, showrooms, galleries, exhibition halls and restaurant dining rooms. The two-metre span reduces the number of modules and connectors, lowering both material costs and installation time across a large ceiling. Dry indoor use.
