5.4W Black CCT Recessed LED Spotlight, IP65, RE2020, Insulation-Coverable
Designed for projects subject to RE 2020, this black-trim spotlight delivers 600 lumens while consuming 5.4W, or 111 lm/W. Its insulation-coverable design allows it to be installed directly under glass or rock wool without a protective enclosure, while its integrated terminal block preserves the airtightness of the wall. Three selectable color temperatures let you use the same stocked product in spaces with different purposes.
Beam angle: 40° — IP65 — Class II (double insulation, no protective conductor)
Power supply: 220-240V 50-60Hz — dimmable — lifespan: ~50000h
Ø8.05 x 4.95 cm — cutout: Ø60 mm — aluminum and ABS housing
Features
Can be covered with insulation: meets the requirements for continuous insulation in RE 2020 construction
Supplied with a terminal block for wiring, with no connector block or additional connector required

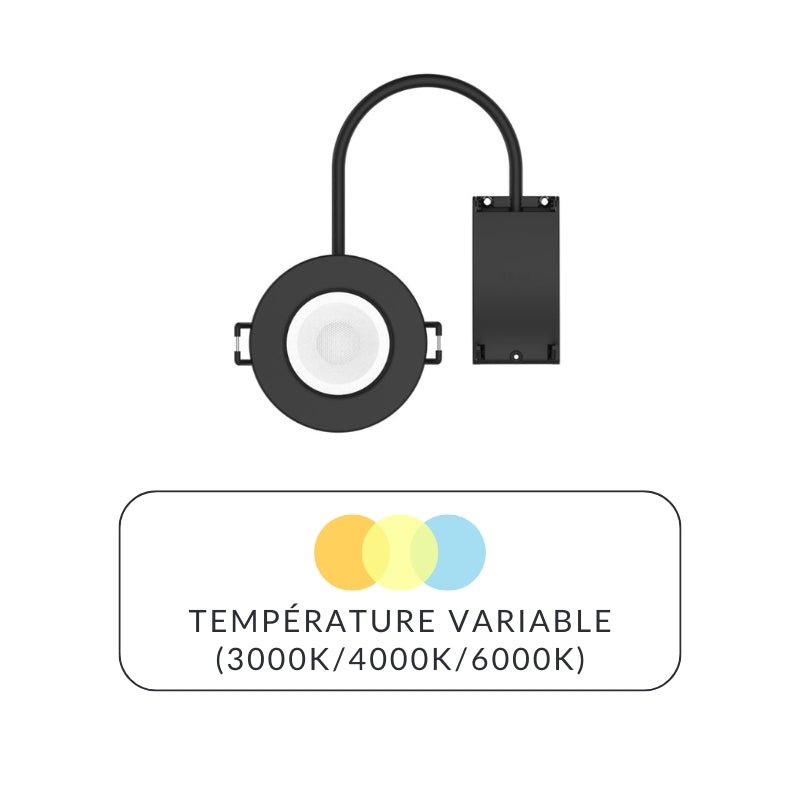

Integrated CCT switch: one item in stock for corridors, offices, and damp areas
Dimmable with a compatible dimmer, for dimming scenarios and energy management
Installation
Isolate the circuit before starting work. Drill a Ø60 mm hole in the suspended ceiling or plasterboard, connect the wires to the terminal block, select the color temperature, then insert the springs and clip the fixture into place. Wiring must comply with NF C 15-100. No safety clearance is required above the fixture thanks to its insulation-coverable design.
Where can you use this spotlight?
New-build and renovation homes subject to RE 2020, with insulated ceilings
