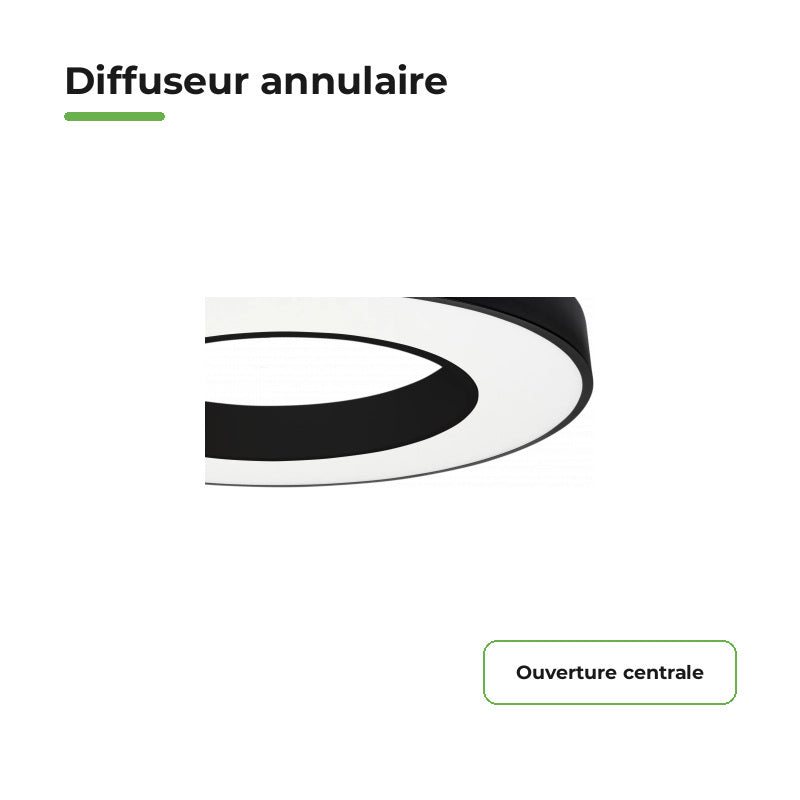

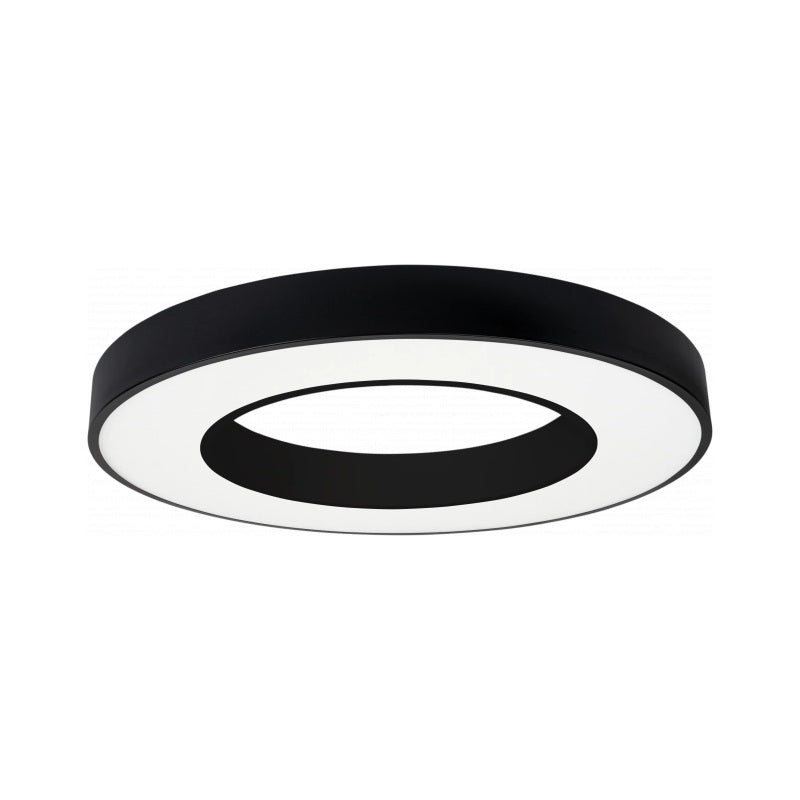

36W Black LED Ceiling Light 50 cm with Suspension Kit

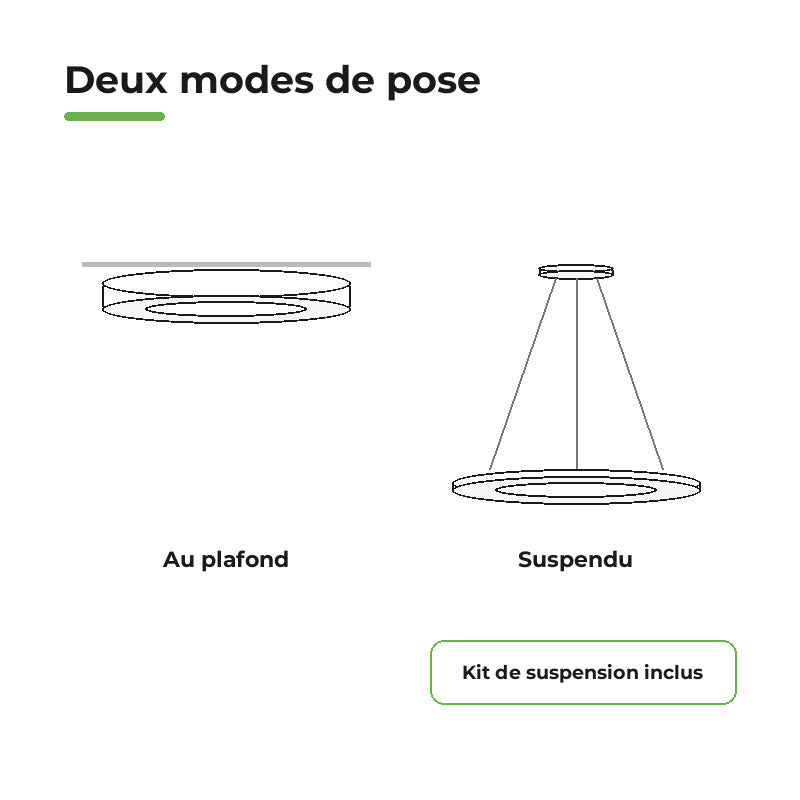

Designed for commercial renovation projects as well as residential developments, this black ring-shaped light with a ø 50 cm diameter offers two installation options with a single product reference: ceiling-mounted or suspended using the included three-cable kit. Simplify procurement and create a consistent look across the lighting points in a project.
Technical details
- Rated power: 36W, weighted energy consumption 36 kWh/1000 h

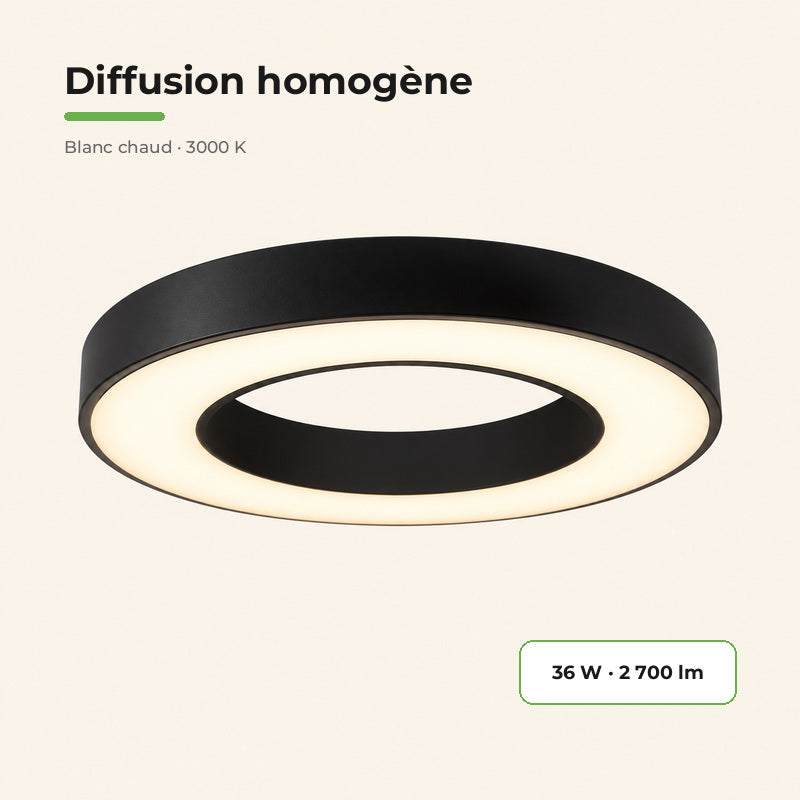

- Rated luminous flux: 2700 lm, luminous efficacy 75 lm/W
- Incandescent equivalent: 750W
- Color temperatures: 3000K (warm white) or neutral white
- Beam angle: 120°
- CRI ≥ Ra 80
- Power factor (PF): 0.9, low reactive power demand
- Voltage range: 175 - 260V AC, 50-60 Hz, tolerant of mains fluctuations
- Light source: non-replaceable 5630 SMD LEDs, 70% lumen maintenance at end of life
- Protection rating: IP20, dry locations
- Class I: protective earth (PE) conductor must be connected
- Permissible ambient temperature: -20°C / +40°C

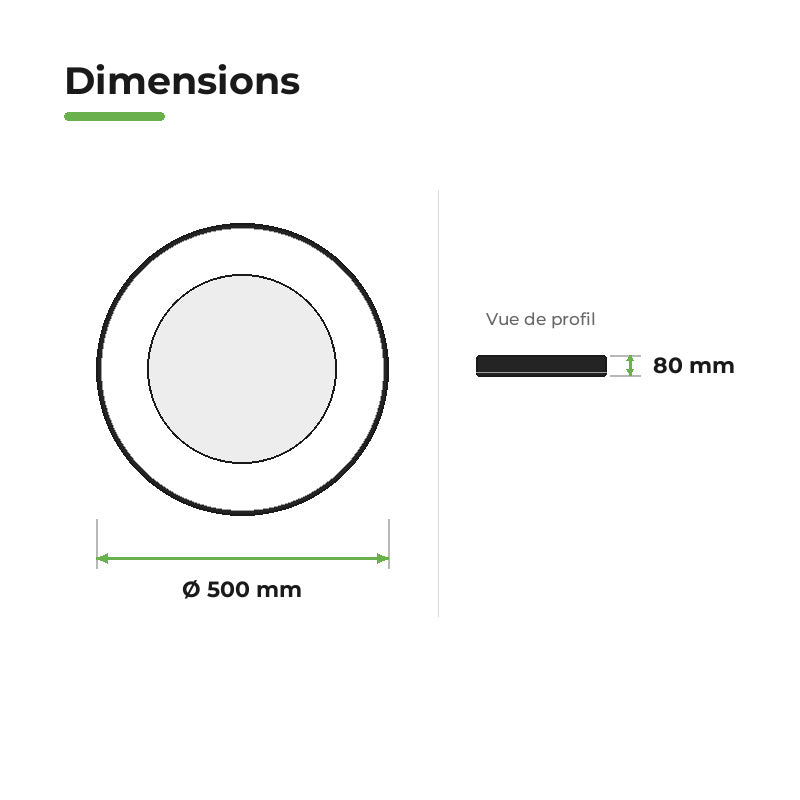

- Dimensions: ø 50 x 8 cm, polycarbonate (PC) body
- Rated lifetime: 25000 h, 25000 switching cycles, 0.1 s start-up time
- Energy class F, CE & RoHs compliance, 2-year warranty
Features
The 0.1 s start-up time and durability of 25000 switching cycles make this light suitable for circuits that are switched frequently, such as corridors and passageways. The two color temperatures let you match the light to the project's lighting layout: 3000K for reception areas and hotels, neutral white for workstations. This product is not dimmable; use an on/off switch without a dimmer.
Installation

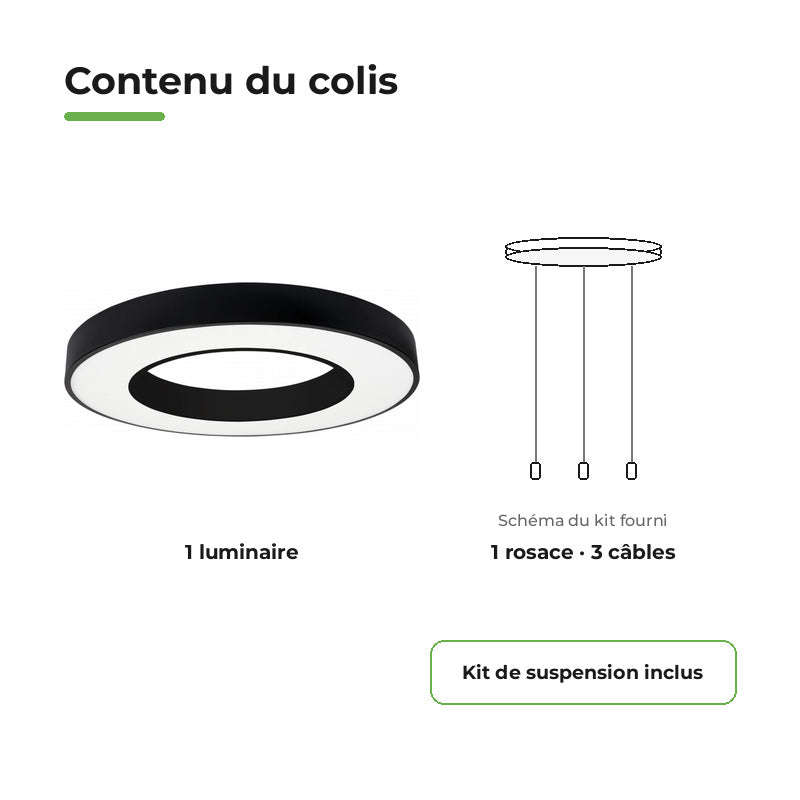

Isolate the circuit (switch off the power and verify that no voltage is present) before carrying out any work. For suspended installation, attach the three cables to the light and adjust them using the pressure locks to achieve precise leveling. Connect the wiring to the L/N/PE terminal block, with conductors stripped by 6 mm. Secure the canopy using anchors suited to the mounting surface (concrete slab, plasterboard, or wood), after checking for concealed wiring and pipes. Do not install in bathroom zones. Remember to record the product reference and chosen installation method in the handover documentation.
Where can this ceiling light be used?

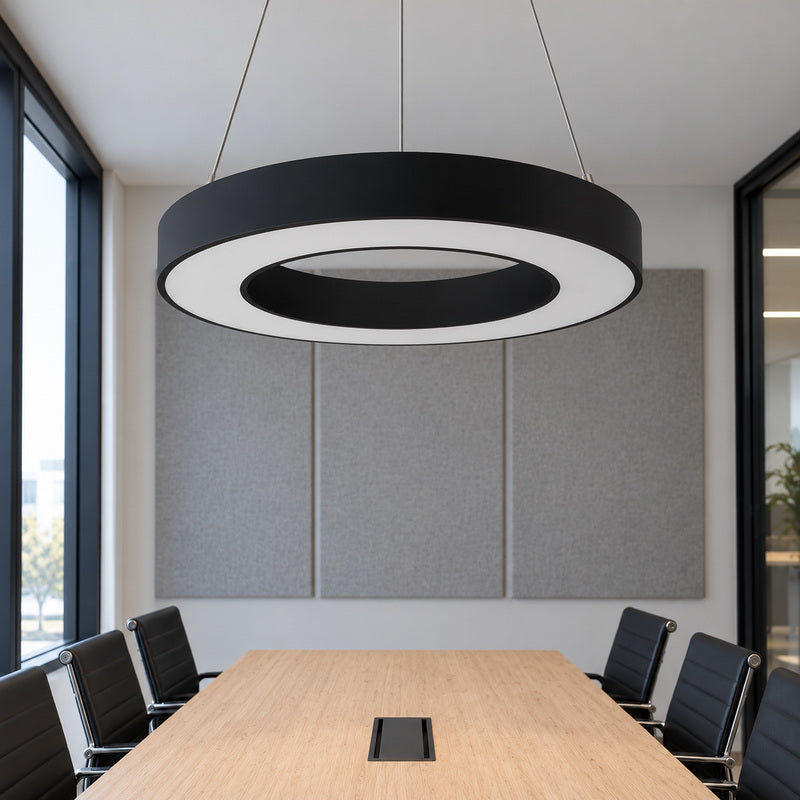

Offices, meeting rooms, reception areas, hotel rooms, restaurants and shops, as well as newly built homes supplied with fittings: this model is suitable wherever even, direct lighting and a clean, understated look are desired indoors in dry locations.
